Indoor Inteligent Mechanical LED Display 10 Layers 2 Faces(Cambered Surface)
Indoor Inteligent Mechanical LED Display 10 Layers 2 Faces(Cambered Surface)
Detail Parameter Remark
Display Model Indoor P2 Optional
Module Specification Flexible Module 320x160
Layers 10 Layer

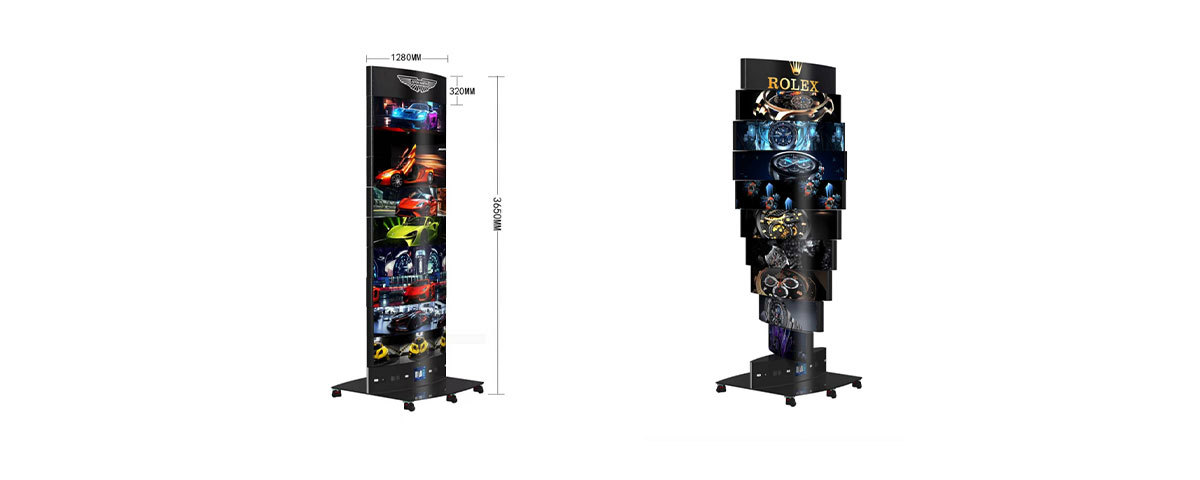

Dimension Length 1280mm;Width 320mm; Height 3650mm
Appearance Cambered Surface (Wide View Angle)
Faces 2Faces
Single Face Size per Layer 1280x320/face
Total Size 2560x3200（8.19m2）
Weight Around550KG
Height 3650mm
Max Power Consumption 8.9KW
Rotating Mode Default Mode/Custom Mode Rotating Mode Optional according to play images
Rotating Speed Adjustable Moving Speed Adjustable according to customer or play images
On/Off Equipment on/off by touchscreen or mobile phone
Image Control Wireless upload  Tablet & PC uploading
Power Supply 220V/380V 220 or 380V Power Only
Equipment Installation   Chasis Included
