| Detail | Parameter | Remark | |
| Display | Display Model | Indoor P3 | Optional |
| Module Specification | Flexible Module 320x160 | Standard | |
| Layers | 3 Layer | ||

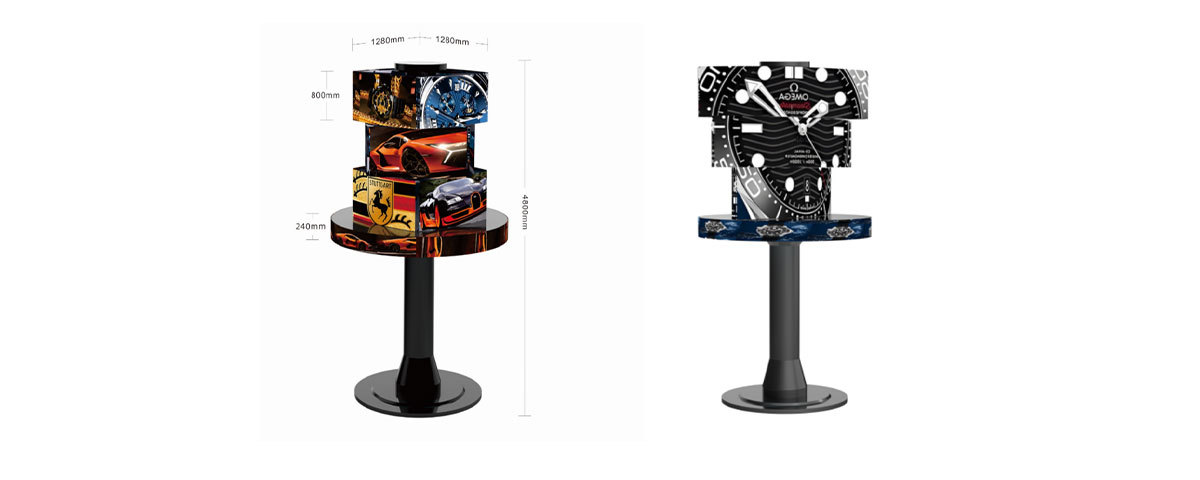

| Dimension | Width 1280mm; Height 4800mm | ||
| Appearance | Cambered Surface (Wide View Angle) | ||
| Faces | 12 Faces | ||
| Single Face Size per Layer | 1280x800/face | ||
| Total Size | 5120x2400 | Display Area12.288sq.m | |
| Weight | Around 2270KG | ||
| Height | 4800mm | ||
| Max Power Consumption | 11.9KW | Max Power Consumption 11.9KW | |
| Intelligent Control | Rotating Mode | Default Mode/Custom Mode | Rotating Mode Optional according to play images |
| Rotating Speed | Adjustable | Moving Speed Adjustable according to customer or play images | |
| On/Off Equipment | on/off by touchscreen or mobile phone | ||
| Image Control | Wireless upload | Tablet & PC uploading | |
| Installation | Power Supply | 220V/380V | 220 or 380V Power Only |
| Equipment Installation | Chasis Included |
